    2.5mm-6.0mm Welded Gabion Box Gabion Mesh Cage With Spirals Locking Pins And Stiffener

    2.5mm-6.0mm Welded Gabion Box Gabion Mesh Cage With Spirals Locking Pins And Stiffener

    Welded gabion box description:

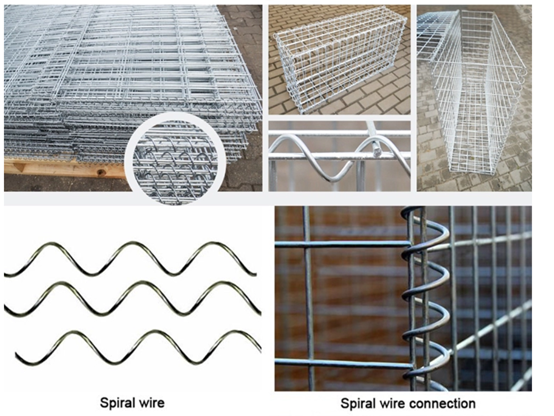

    Welded gabion box is made of welded wire mesh panels assembled with spirals locking pins and stiffener.
    The philosophy of the Welded gabion box is similar to woven gabions. Weld gabion units consist of panels
    of welded wire mesh, secured together to form a gabion unit, which is filled on site with gabion stone to form
    the appropriate structure.

    Welded gabion box specification details:

    Mesh SizeWire Dia.Spring WireNominal DimensionsNumber of Cells

    40x40mm

    50x50mm

    60x60mm

    75x75mm

    80x80mm

    50x100mm


    3.0mm

    4.0mm

    5.0mm


    3.0mm

    4.0mm


    1x1x0.5m

    1x1x1m

    2x1x1m

    2x0.7x0.6


    1

    2

    All size and dimensions are normal, bold font is the most popular size.
    Wire diameter:2.5mm,3mm,4mm ,5mm,6mm etc.
    Materials:Galvanized steel wire; Galfan coated wire, stainless steel wire
    Hole shape:Square or rectangle
    Galvanization:electric galvanizing, hot dip galvanizing, high dip galvanizing, zinc-aluminium alloy, 5% zinc-aluminium, 10% zinc-aluminium
    Surface treatment:spray, spray paint, dip, can choose different colors.
    Size(L&W&H):0.5*0.5*1m,1*1*1m ,2*0.5*0.5m,2*1*1m etc
    Mesh size: 5x5cm, 5x10cm, 7.5x7.5cm, 10x10cm
    Special specificationcan be customized according to the requirements of the corresponding mesh


    Welded gabion box are classified according to coating, as follows:
    Style 1, consists of welded wire fabric made from wire which is zinc coated before being welded into fabric.
    Spiral binders, lacing wire, and stiffeners are produced from zinc coated wire.

    Style 2, consists of welded wire fabric which is made from uncoated wire and the fabric is subsequently zinc
    coated after fabrication. Spiral binders, lacing wire, and stiffeners are produced from zinc coated wire.

    Style 3, consists of welded wire fabric made from wire which is coated with zinc-5 % aluminum-mischmetal

    alloy(Zn-5Al-MM) before being welded into fabric. Spiral binders, lacing wire, and stiffeners are also produced
    from zinc-5 % aluminum-mischmetal alloy (Zn-5Al-MM) coated wire.


    Welded gabion box application:

    Control and guide of water or flood

    Flood bank or guiding bank

    Preventing of rock breaking

    Water and soil protection

    Bridge protection

    Strengthening structure of soil.
    Protection engineering of seaside area


    Welded gabion box Installation details:

    1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
    2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
    3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing,

    and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
    4. Gabion box filled with graded stone by hand or with a shovel.
    5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
    6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the up
